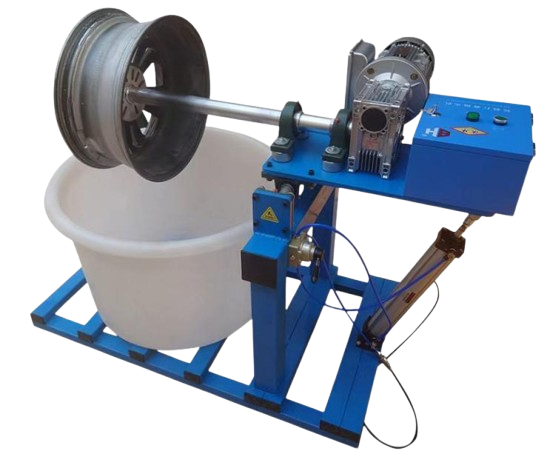

Wheel Polishing Machine

Professional Alloy Wheel Finishing Equipment

High-efficiency wheel polishing machine designed for alloy wheel refurbishment, providing smooth, high-gloss surface finishing after repair, sanding, or paint removal.

Suitable for wheel repair workshops and automotive refurbishment centers.

Equipment Weight: 160kg

Equipment Dimensions: 73*130*130mm

Maximum Wheel Hub Size: 24 inches

Voltage: 220V/380V

Motor Power: 1500W

I. Operating Instructions

1. Fit the wheel rim onto the spindle and insert the cone. Insert the screw into the

disc. Remove the large screw and the cone. 2. Connect the air source and insert the air inlet pipe. Use the cylinder's up and down

valves to adjust the spindle's lifting speed. 3. Connect to 220V/380V three-phase power. Use the control handle to raise and

lower the spindle. 4. Press the power switch; the spindle will rotate. Initial setting: 30 minutes forward, 30 minutes reverse. 5. The mixing tank base should be lined with a wooden or iron partition to extend its

service life.
