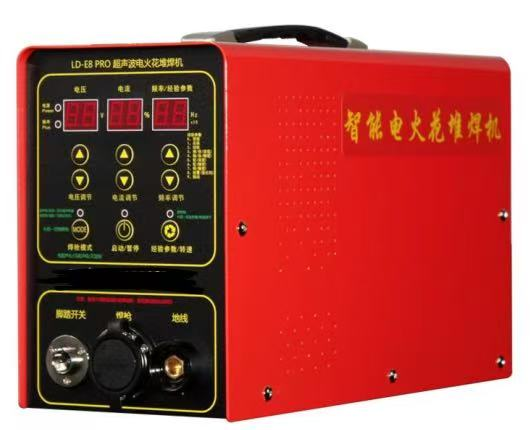

Ultrasonic Intelligent EDM welding machine
Advanced Ultrasonic EDM Welding System for High-Precision Metal Surface Restoration
$1580.00$1280.00
Product Model：LD-E8PRO
Input Voltage: 220V
Output Voltage: 10–99V
Input Power: 1500W
Output Frequency: 20–990 Hz
Output Pulse Width: 3 kW
Electrode Diameter (Ultrasonic Welding Gun): 0.8–5.0 mm
Internal Power Supply: Dual Closed-Loop Current-Mode PWM Power Supply The primary advantage of electric spark surfacing is that the welding stress exerted on the workpiece is virtually zero; consequently, the workpiece faces no risk of deformation or cracking—a feat unattainable by other welding methods.
The surfacing process is the result of the combined interplay of various phenomena, including metal ion discharge transfer, micro-arc fusion, and resistance fusion welding.
Repairable Materials: A wide range of metal materials can be repaired, such as steel, cast iron, stainless steel, aluminum, copper, and others.
Repairable Defects: Various defects can be repaired, including sand holes, porosity, localized wear, impact damage, corrosion spots, and similar imperfections.
